Defense Industry

We are developing and mass-producing advanced weapon systems such as
military tactical communication systems and radars by integrating advanced technologies.

Gwanggaeto-III Batch-II Integrated Sonar System

The Gwanggaeto-Ⅲ Batch-Ⅱ Integrated Sonar System is an integrated sonar system for combat ships that operates multiple sonar sensors to detect enemy submarines at a distance. HUMEDIA is developing the components of the transmission/reception systems for the Gwanggaeto-III Batch-II Integrated Sonar System.

광개토-III
  • plus_btn

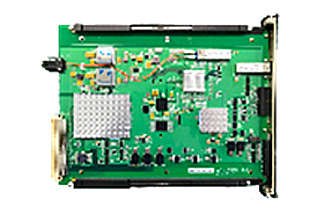

    Transmission/Reception Rack Control Panel

    close
    Transmission/Reception Rack Control Panel
    • 2.2 Gbps digital optical transmission
    • High speed optical frame design
    • Manchester Communications

    This digital optical transmission module is applied to the integrated sonar system. It converts and distributes the input optical signals to high-speed 422 communication.

  • plus_btn

    Low Voltage Supply Board

    close
    Low Voltage Supply Board
    • DC-DC converter
    • Low noise power output
    • 24V 2 channels

    This DC-DC conversion module is applied to the integrated sonar system. It converts 48V input to 2-channel 24V.

  • plus_btn

    Inspection Control Panel

    close
    Inspection Control Panel
    • Equipment control/monitoring
    • Ethernet and RS-232C communication
    • Windows OS

    This control SBC module is applied to the integrated sonar system. It controls the equipment, monitors the status, and communicates with the upper and lower systems.

  • plus_btn

    Equipment Control Panel

    close
    Equipment Control Panel
    • Equipment control/monitoring
    • RS-232C communication
    • FPGA logic design

    This FPGA module for control is applied to the integrated sonar system. It controls the equipment, monitors the status, and communicates with the upper and lower systems.
